# Architecture

#### Inheritance Structure

```solidity
MetaVault
├── MetaVaultBase
│   └── MultiFacetProxy
│       └── OwnableRoles
├── Multicallable
└── NoDelegateCall

ERC7540Engine
└── ModuleBase
    └── OwnableRoles

AssetsManager
└── ModuleBase
    └── OwnableRoles

Gateway System
├── SuperformGateway
│   └── MultiFacetProxy
│       └── GatewayBase
├── InvestSuperform
│   └── GatewayBase
├── DivestSuperform
│   └── GatewayBase
└── LiquidateSuperform
    └── GatewayBase
```

#### Core Contract Relationships

**MetaVault Core**

```solidity
contract MetaVault {
    // Core state tracking
    uint128 internal _totalIdle;
    uint128 internal _totalDebt;

    // Module interfaces
    AssetsManager public assetsManager;
    ERC7540Engine public engine;
    ISuperformGateway public gateway;

    // Access control
    mapping(address => mapping(address => bool)) public isOperator;
    mapping(address => uint256) public positions;
}
```

**ERC7540Engine**

```solidity
contract ERC7540Engine {
    // Withdrawal state management
    struct ProcessRedeemRequestCache {
        uint256[WITHDRAWAL_QUEUE_SIZE][N_CHAINS] dstVaults;
        uint256[WITHDRAWAL_QUEUE_SIZE][N_CHAINS] sharesPerVault;
        uint256[WITHDRAWAL_QUEUE_SIZE][N_CHAINS] assetsPerVault;
        uint256[N_CHAINS] lens;
        // ... additional fields
    }

    // Withdrawal queue processing
    function _prepareWithdrawalRoute(
        ProcessRedeemRequestCache memory cache
    ) private view;
}
```

**Gateway System**

```solidity
contract GatewayBase {
    // Core gateway state
    ISuperPositions public superPositions;
    IBaseRouter public superformRouter;
    IMetaVault public vault;
    address public receiverImplementation;

    // Cross-chain tracking
    mapping(bytes32 => address) public receivers;
    mapping(uint256 => uint256) public pendingXChainInvests;
    uint256 public totalpendingXChainInvests;
}
```

```solidity
// Receiver contract deployment
function getReceiver(bytes32 key) public returns (address receiverAddress) {
    receiverAddress = LibClone.clone(receiverImplementation);
    ERC20Receiver(receiverAddress).initialize(key);
}
```

```
Engine Architecture Components
ERC7540EngineBase
└── Core withdrawal queue routing logic
└── State caching for cross-chain operations
└── Chain and vault selection algorithms
```

```solidity
contract ERC7540EngineBase is ModuleBase {
    // Core withdrawal routing functionality
    function _prepareWithdrawalRoute(
        ProcessRedeemRequestCache memory cache,
        bool despiseDust
    ) internal view {
        // Process local withdrawal queue
        _exhaustWithdrawalQueue(cache, localWithdrawalQueue, false, despiseDust);
        // Process cross-chain withdrawal queue
        _exhaustWithdrawalQueue(cache, xChainWithdrawalQueue, true, despiseDust);
    }

    // Dust threshold management
    function setDustThreshold(uint256 dustThreshold) external onlyRoles(ADMIN_ROLE) {
        // Sets minimum threshold for cross-chain withdrawals
    }

    function getDustThreshold() public view returns (uint256) {
        // Retrieves current minimum threshold
    }
}
```

```solidity
ERC7540EngineReader
└── Withdrawal simulation and preview
└── Route optimization analysis
```

```solidity
contract ERC7540EngineReader is ERC7540EngineBase {
    // Simulates withdrawal without execution
    function previewWithdrawalRoute(
        address controller,
        uint256 shares,
        bool despiseDust
    ) public view returns (ProcessRedeemRequestCache memory cachedRoute) {
        // Simulates complete withdrawal route
        // Calculates optimal asset sourcing from idle funds and vaults
        // Returns detailed breakdown of withdrawal strategy
    }
}
```

```
ERC7540EngineSignatures
└── Signature verification for gasless transactions
└── External processing authorization
```

```solidity
contract ERC7540EngineSignatures is ERC7540ProcessRedeemBase {
    // Verifies signed withdrawal requests
    function verifySignature(
        ProcessRedeemRequestParams calldata params,
        uint256 deadline,
        uint256 nonce,
        uint8 v,
        bytes32 r,
        bytes32 s
    ) public view returns (bool) {
        // Validates signature against expiration, nonce and request parameters
    }

    // Processes withdrawals initiated via signature
    function processSignedRequest(
        ProcessRedeemRequestParams calldata params,
        uint256 deadline,
        uint8 v,
        bytes32 r,
        bytes32 s
    ) external {
        // Processes withdrawal request authorized by signature
        // Enables gas-less withdrawals for users
    }
}
```

#### Error Catalog

```solidity
error InsufficientAssets();
error VaultNotListed();
error RequestNotFound();
error InvalidController();
error MinimumBalanceNotMet();
error InvalidSuperformId();
error InvalidRecoveryAddress();
error InvalidAmount();
error TotalAmountMismatch();
error SharesLocked();
error VaultShutdown();
error Unauthorized();
error ExceedsMaxDeposit();
error ExceedsMaxMint();
```

### State Flow Diagrams

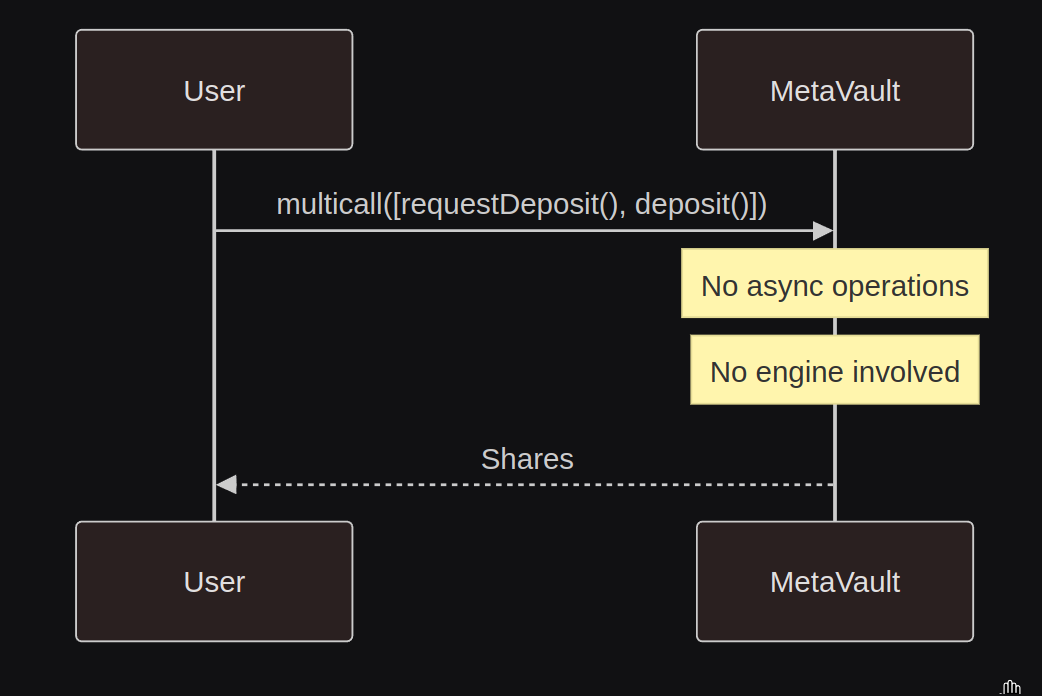

#### Deposit Flow

1. User -> MetaVault: `requestDeposit()`
2. MetaVault: Update deposit request state
3. MetaVault -> User: `deposit()` available
4. MetaVault: Share minting and accounting

<figure><img src="/files/7U1doIm20SWDR7u7OIcZ" alt=""><figcaption></figcaption></figure>

#### Investment Flow

```solidity
// Example investment flow
function investSingleXChainSingleVault(
    SingleXChainSingleVaultStateReq calldata req
) external payable onlyVault {
    // 1. Validate and prepare
    if (!isVaultListed(vaultAddress)) revert VaultNotListed();

    // 2. Setup receiver
    address receiver = getReceiver(key);

    // 3. Track investment
    pendingXChainInvests[superformId] += amount;

    // 4. Initiate bridge
    gateway.investSingleXChainSingleVault{value: msg.value}(req);
}
```

<figure><img src="/files/JOp774uuwCeeCfip7FzM" alt=""><figcaption></figcaption></figure>

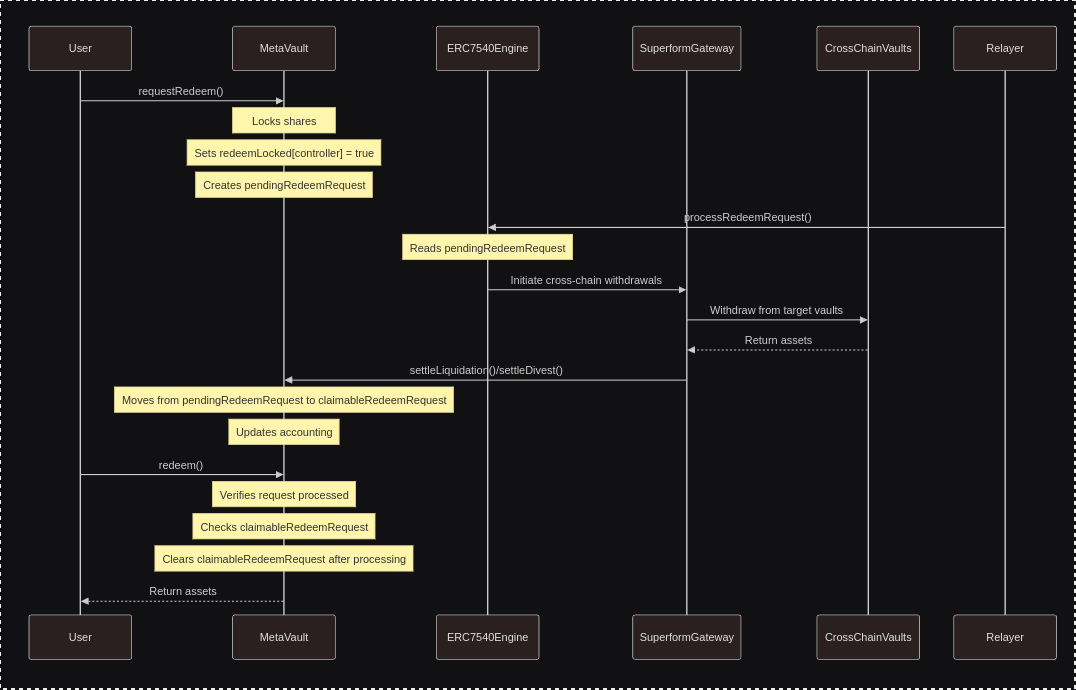

#### Withdrawal Flow

1. User -> MetaVault: `requestRedeem()`
2. ERC7540Engine: Process withdrawal route
3. Gateway: Handle cross-chain settlements
4. MetaVault -> User: Final redemption

<figure><img src="/files/afuUvj3mD7EZuWgVarya" alt=""><figcaption></figcaption></figure>

### Key Dependencies

#### External Protocol Integration

```solidity
interface ISuperformGateway {
    function investSingleXChainSingleVault(
        SingleXChainSingleVaultStateReq calldata req
    ) external payable;

    function divestSingleXChainSingleVault(
        SingleXChainSingleVaultStateReq calldata req
    ) external payable;
}
```

#### Oracle Integration

```solidity
interface ISharePriceOracle {
    function getLatestSharePrice(
        uint64 chainId,
        address vault
    ) external view returns (uint256);
}
```

### State Management

```solidity
// Request states
mapping(address => ERC7540_Request) private _pendingRedeemRequest;
mapping(address => ERC7540_FilledRequest) private _claimableRedeemRequest;
```

#### Critical State Variables

```solidity
struct VaultData {
    uint16 deductedFees;
    uint64 chainId;
    uint192 lastReportedSharePrice;
    uint256 superformId;
    ISharePriceOracle oracle;
    uint8 decimals;
    uint128 totalDebt;
    address vaultAddress;
}

// Vault positions
mapping(uint256 => VaultData) public vaults;
```

#### Cross-Chain State

```solidity
// Gateway state tracking
mapping(bytes32 => RequestData) public requests;
EnumerableSetLib.Bytes32Set internal _requestsQueue;
```

### Security Architecture

#### Access Control Matrix

| Role             | Permissions            |
| ---------------- | ---------------------- |
| ADMIN\_ROLE      | Protocol configuration |
| EMERGENCY\_ADMIN | Emergency controls     |
| ORACLE\_ROLE     | Price updates          |
| MANAGER\_ROLE    | Investment operations  |
| RELAYER\_ROLE    | Settlement processing  |

#### State Protection

```solidity
modifier nonReentrant() {
    require(_locked != 2, "ReentrancyGuard: reentrant call");
    _locked = 2;
    _;
    _locked = 1;
}

modifier noDelegateCall() {
    require(address(this) == __self, "DelegateCall");
    _;
}
```

### Upgrade Architecture

* Modular design through facet system
* Role-based module management
* State separation between core and modules

### Critical Paths

#### Investment Critical Path

1. Vault listing validation
2. Cross-chain message verification
3. Position tracking updates
4. Settlement confirmation

#### Withdrawal Critical Path

1. Share lock verification
2. Withdrawal route calculation
3. Cross-chain settlement
4. Final redemption processing

### Integration Points

#### Bridge Integration

```solidity
// Bridge configuration
function setGateway(ISuperformGateway _gateway) external onlyRoles(ADMIN_ROLE) {
    gateway = _gateway;
    asset().safeApprove(address(_gateway), type(uint256).max);
    gateway.superPositions().setApprovalForAll(address(_gateway), true);
}
```

#### Oracle Integration

```solidity
function setHurdleRateOracle(IHurdleRateOracle hurdleRateOracle) external onlyRoles(ADMIN_ROLE) {
    _hurdleRateOracle = hurdleRateOracle;
}
```


---
